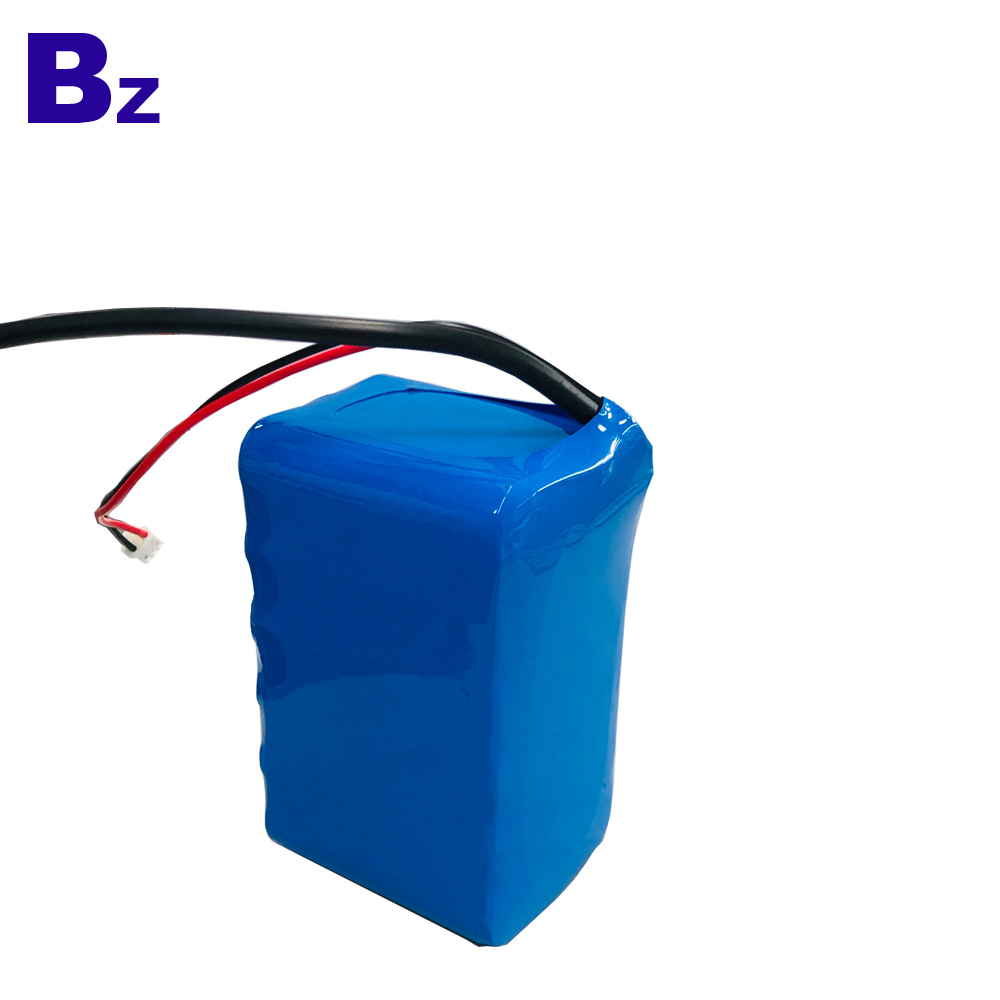

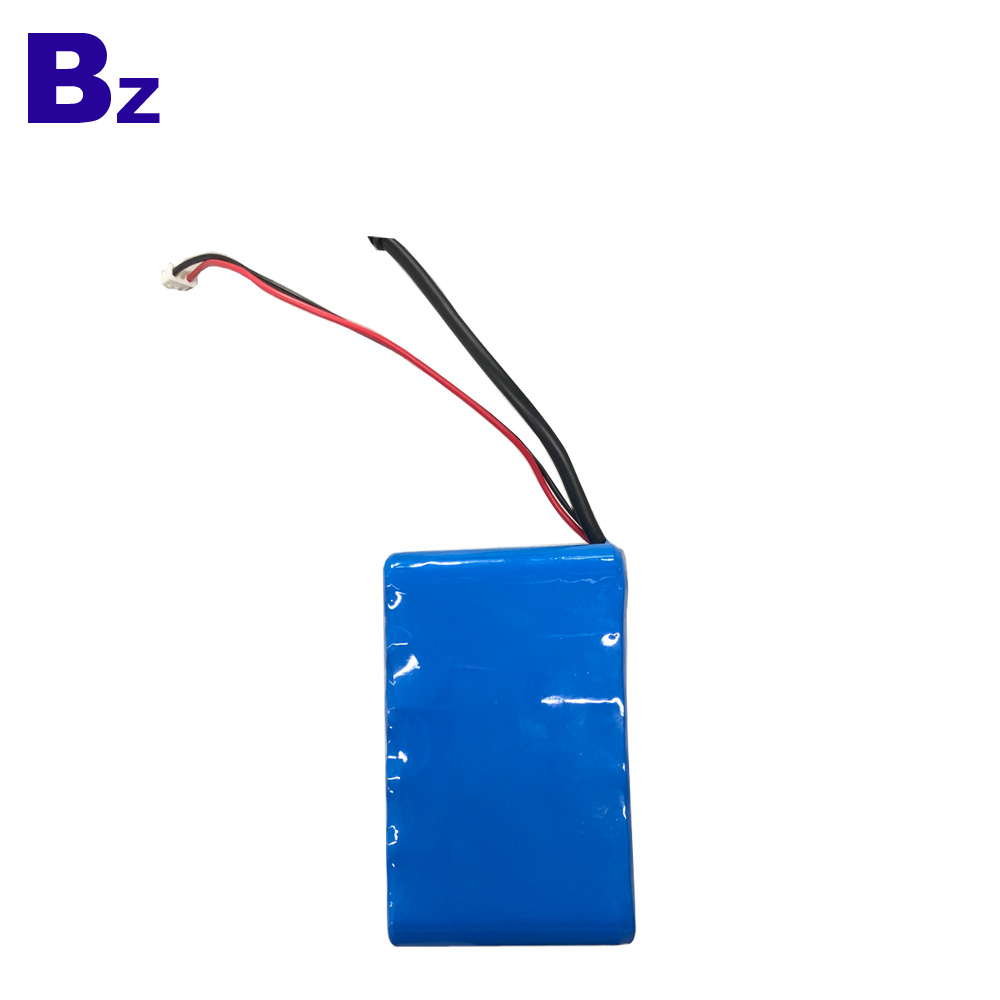

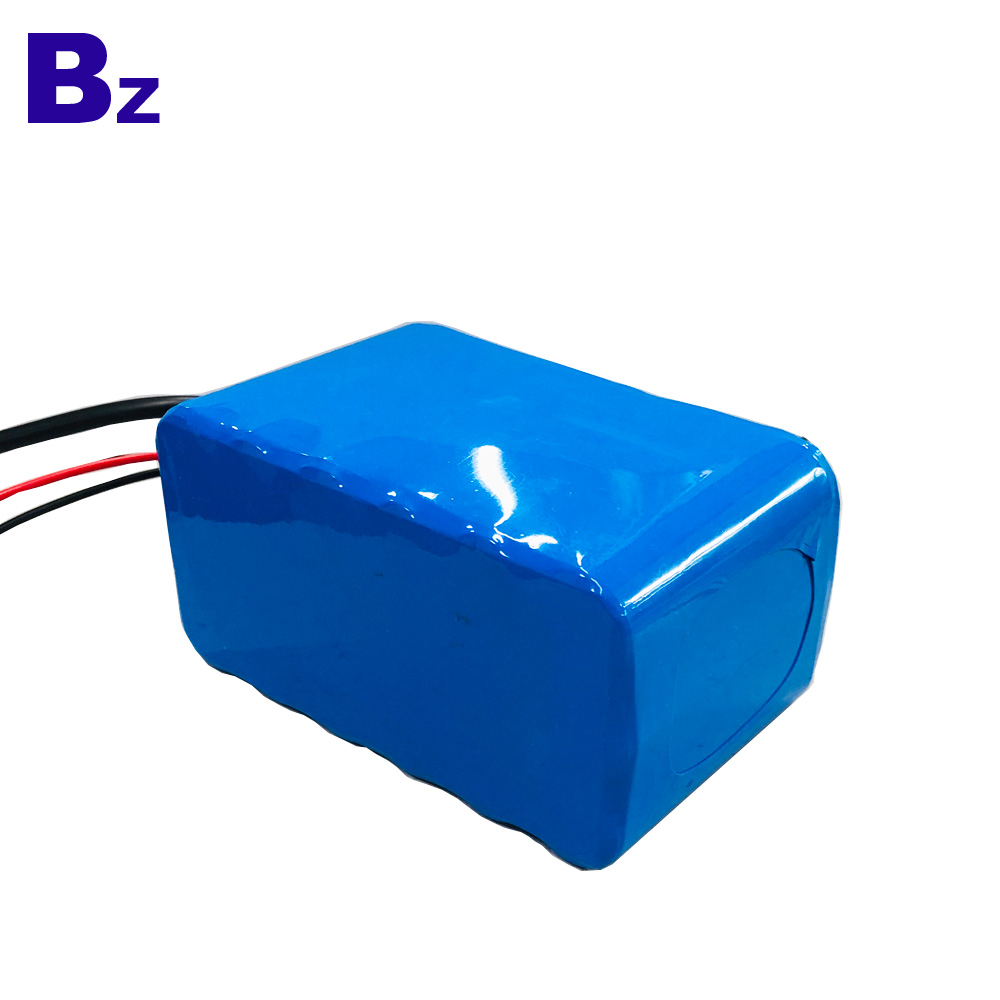

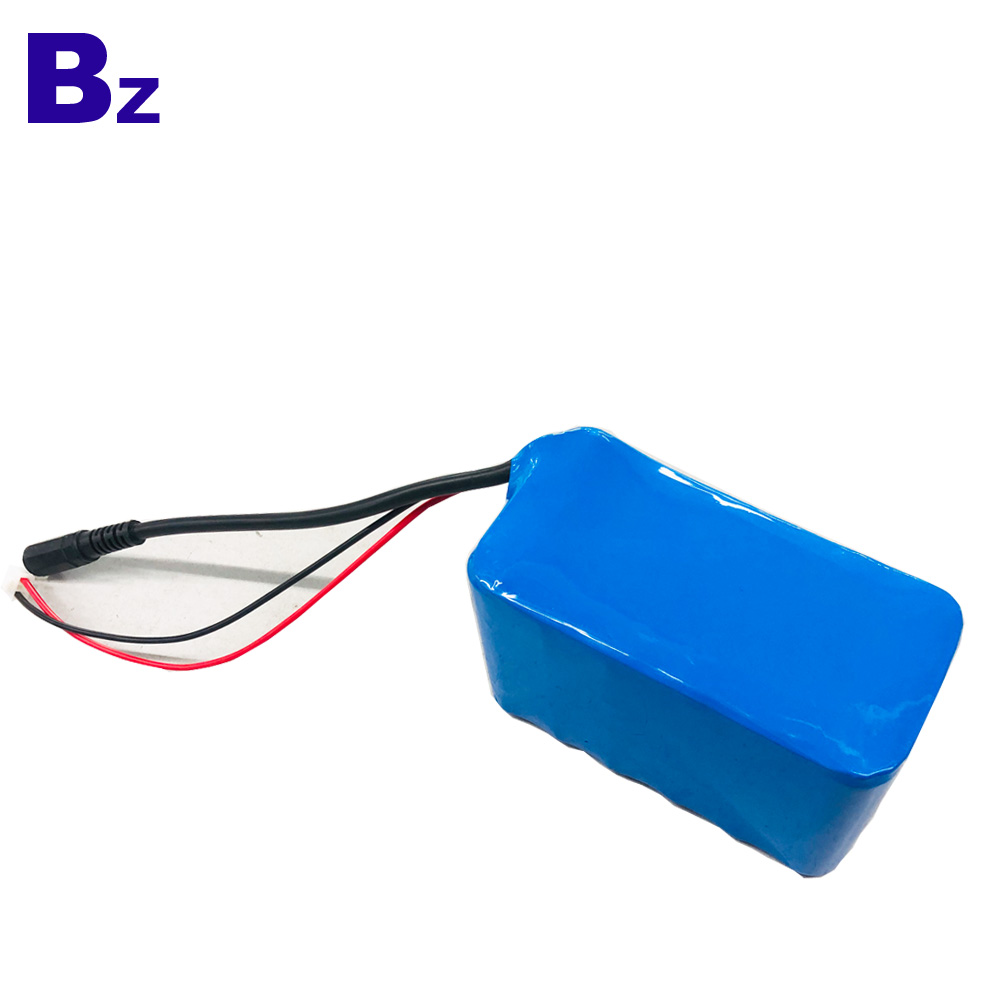

Factory Supply Li-Ion Battery for Energy Storage System UFX 18650-3P6S 7800mAh 22.2V Lithium-ion Battery Pack With Wire And Plug

$32.70
In stock
SKU
UFX 18650-3P6S

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 18650-3P6S
        Type: Li-polymer
        Nominal Voltage: 22.2V
        Size: 55*111*71mm
        Nominal Capacity: 7800mAh
        Product name: UFX 18650-3P6S Li-ion Battery
        Warranty: 1 Year
        Weight: 810g
        Cycle life: 500 Times
        Application: Energy Storage System
        Certificate: UN38.3/CE/MSDS/ROHS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery

7800mAh Li-Ion Battery for Energy Storage System

18650-3P6S 7800mAh 22.2V Lithium-ion Battery Pack

7800mAh Lithium-ion Battery Pack With Wire And Plug

7800mAh Lithium-ion Battery Pack

22.2V Lithium-ion Battery Pack

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

7850mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

7800mAh

2

Nominal Voltage

22.2V

Mean Operation Voltage

3

Voltage at end of

18.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

25.2±0.03V



5

Internal Impedance

≤115mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 25.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 18.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 25.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 18.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max71mm

Width: max111mm
Thickness: max55mm

Initial  Dimension
