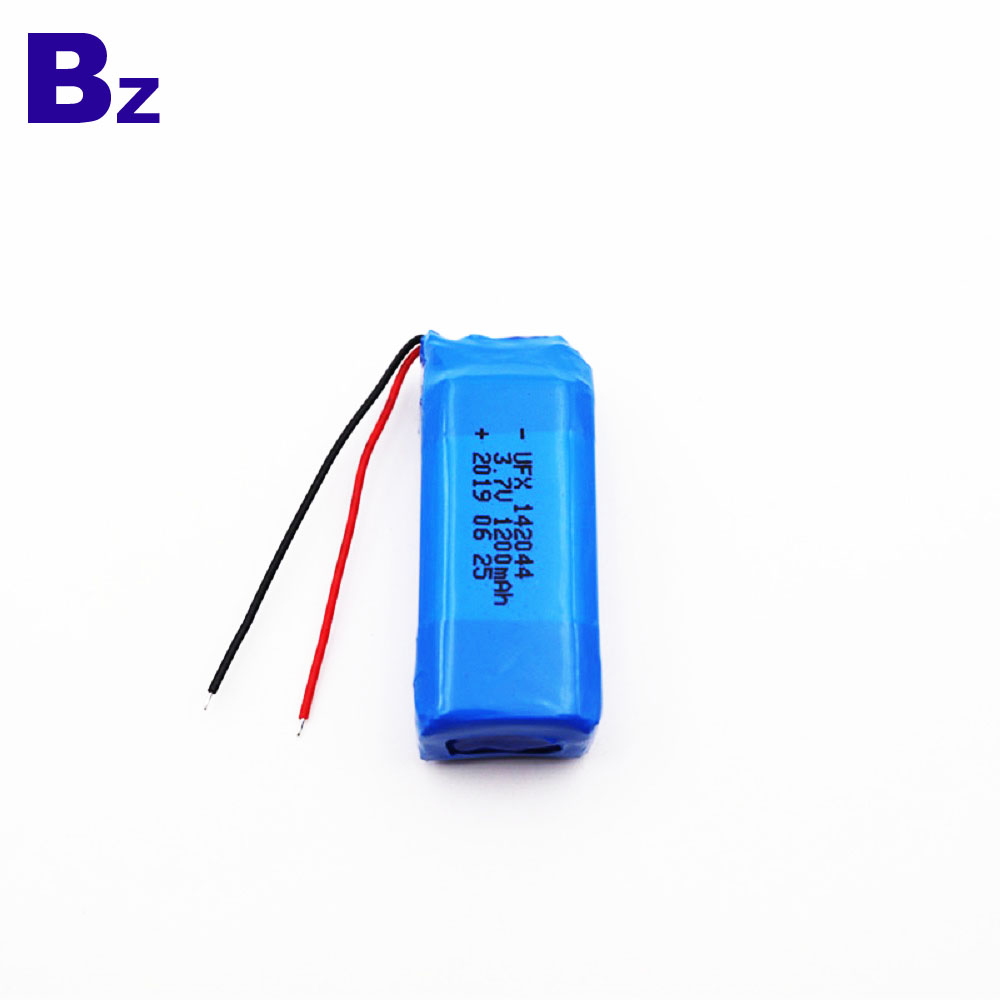

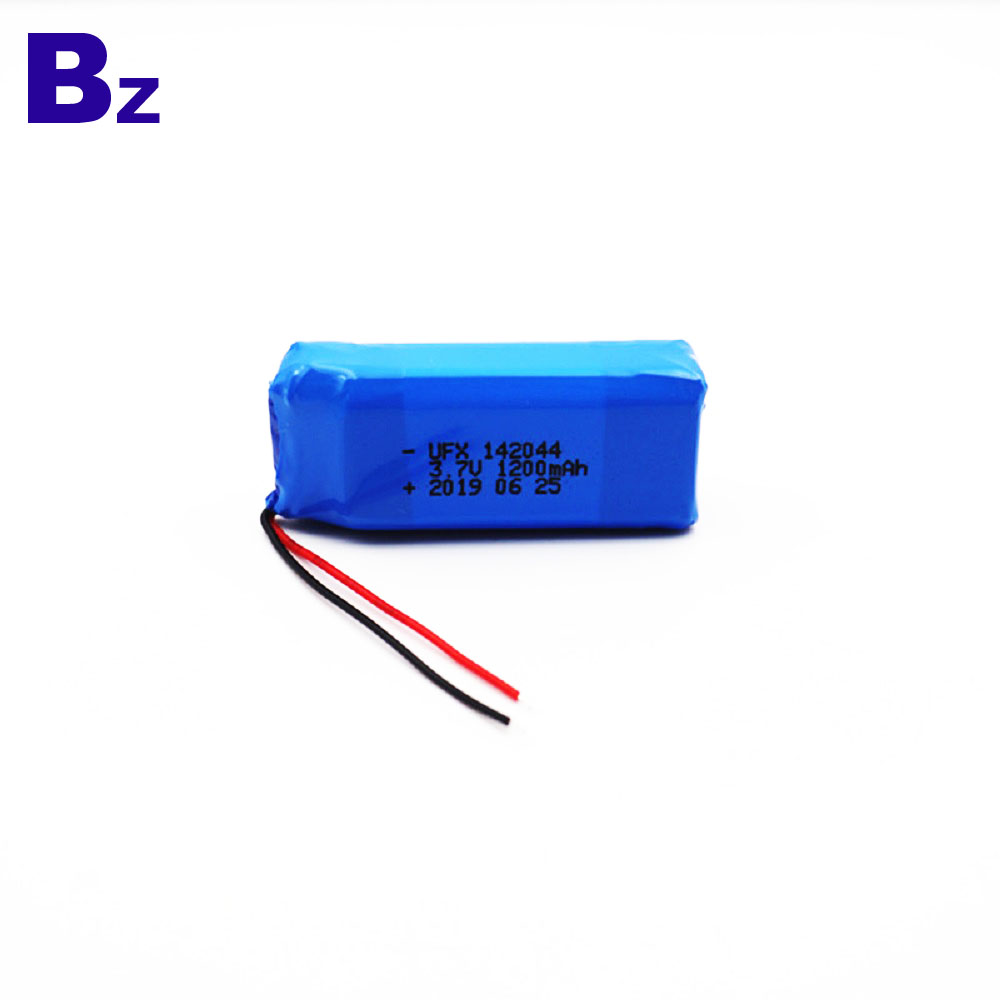

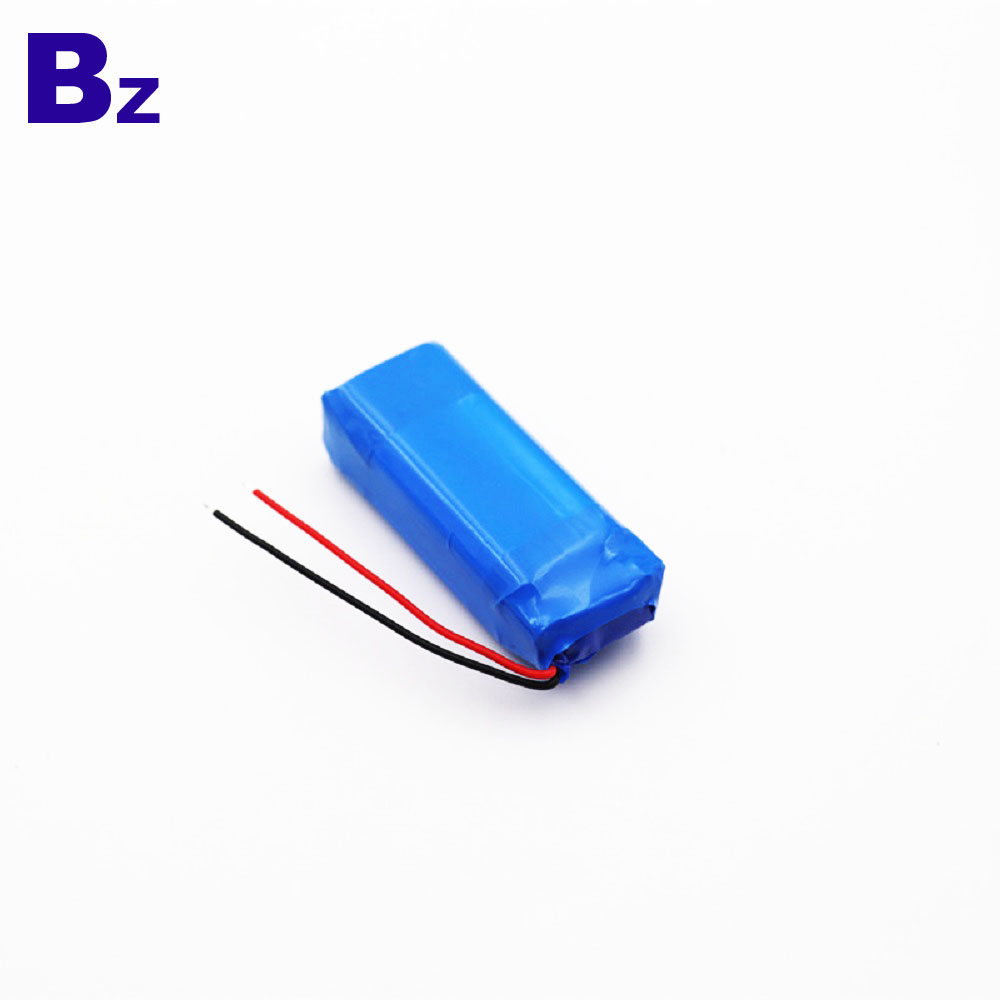

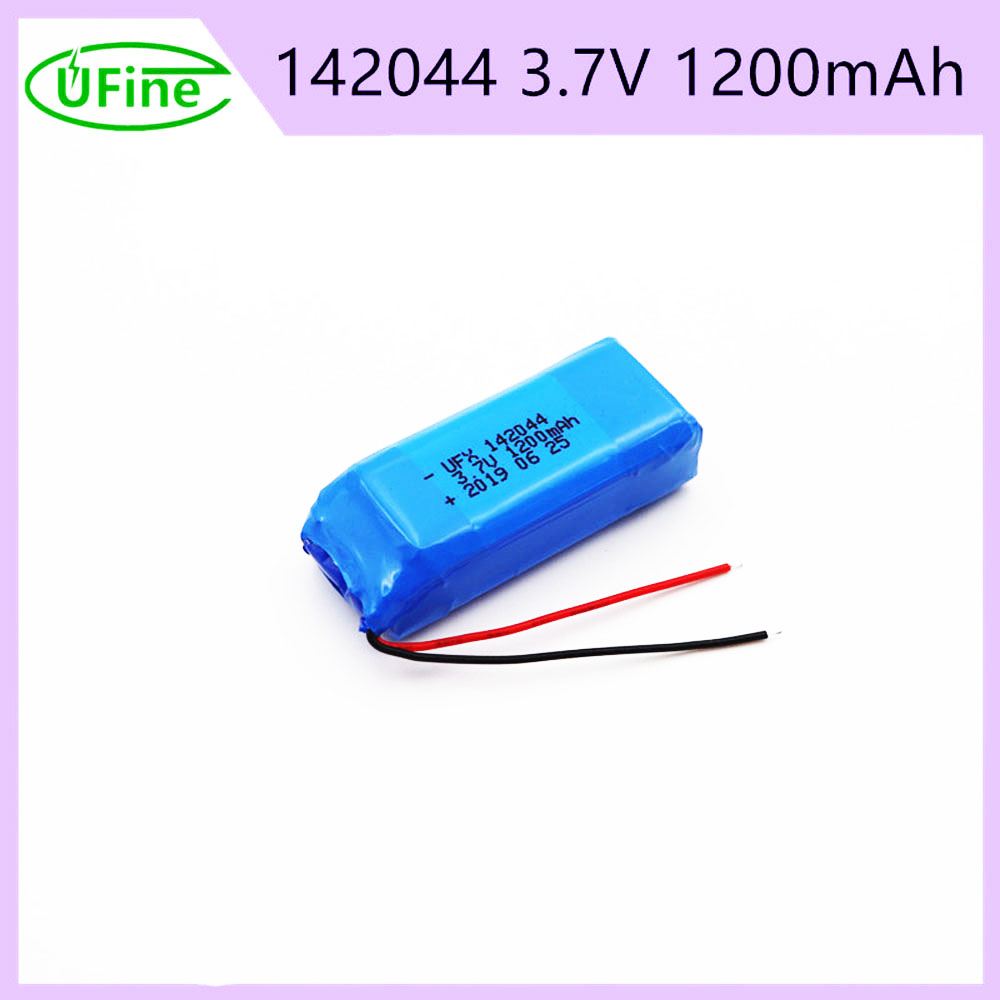

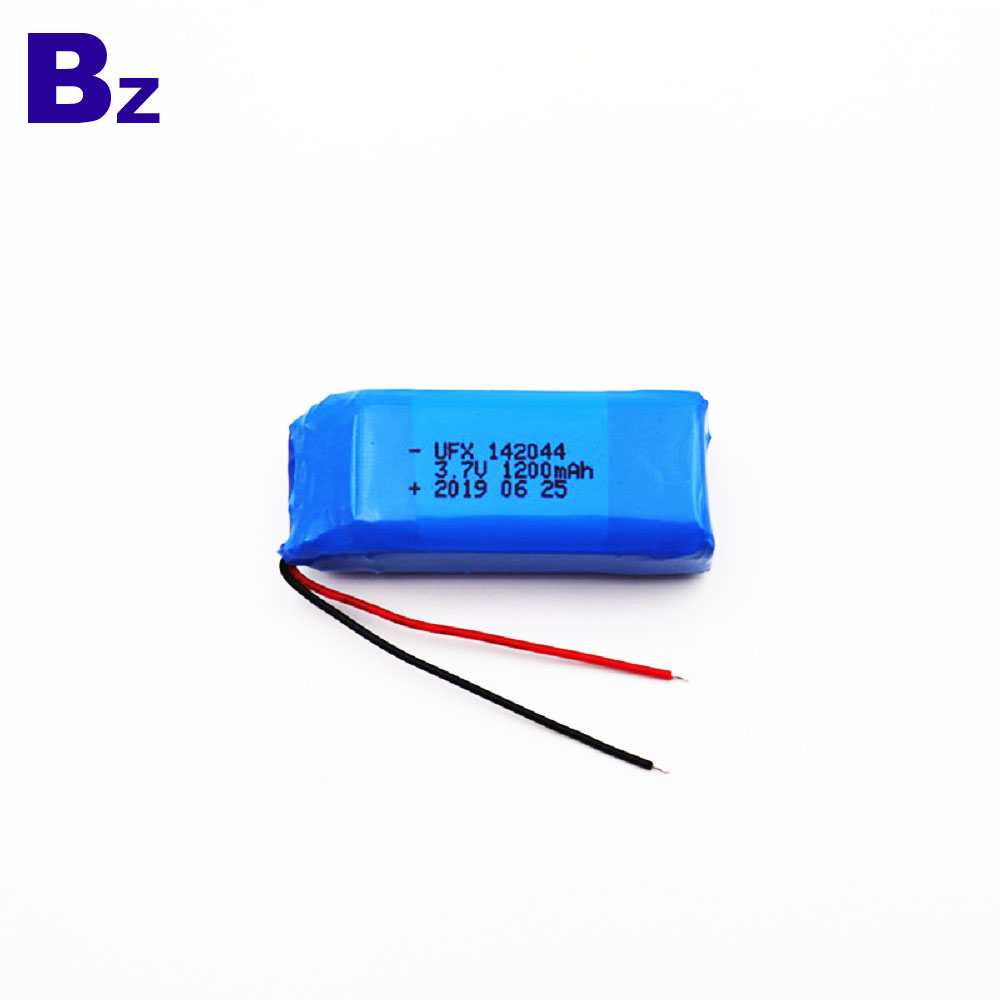

ShenZhen Lipo Battery Manufacturer Customize Battery For Electronic Pen UFX 142044 2P1S 1200mAh 3.7V Li-Polymer Battery

$4.70
In stock
SKU
UFX 142044-2P1S

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

  •     Place of Origin: Guangdong, China
        Brand Name: UFX
        Model Number: 142044-2P1S
        Type: Li-polymer
        Nominal Voltage: 3.7V
        Size: 14*20*47mm
        Nominal Capacity: 1200mAh
        Product name: UFX 142044 2P1S Li-ion Battery
        Warranty: 1 Year
        Weight: 20g
        Cycle life: 500 Times
        Application: Electronic Pen Product
        Certificate: CE/ROHS/UN38.3/MSDS
        Payment: Paypal.TT.Escrow.Western Union
        Max charge current: 1C

li-ion battery

1200mAh Battery For Electronic Pen

142044 1200mAh 3.7V Li Polymer Battery

Manufacturer Customize 1200mAh lipo battery

Battery For Electronic Pen

1200mAh lipo battery

Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

1250mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

1200mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤155mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max47mm

Width: max20mm
Thickness: max14mm

Initial  Dimension
