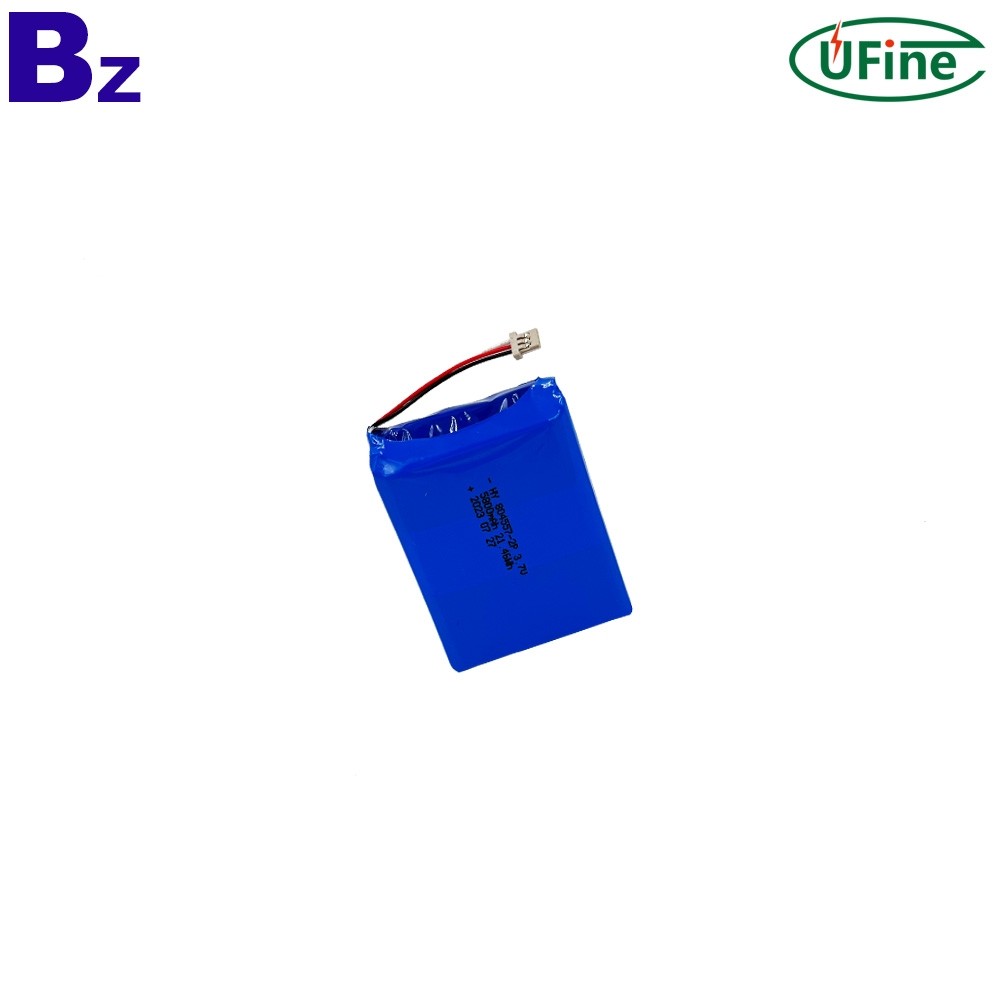

China Professional Li-polymer Cell Factory Customized High Quality BZ 804557-2P 5800mAh 3.7V Lipo Battery Pack for Digital Product

$6.60
In stock
SKU
804557-2P 5800mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere
Please contact us for the order !

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 804557-2P
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 16*45*60mm
    Nominal Capacity: 5800mAh
    Product name: BZ 804557-2P  Rechargeable Battery
    Warranty: 1 Year
    Weight: 100g
    Cycle life: 500 Times
    Application: Digital Product
    Certificate: UN38.3/CE/MSDS/ROHS
    Payment: Paypal.TT.Escrow.Western Union
    Max charge current: 1C



Benzo Energy • UFine Technology' Lithium battery test laboratory

Benzo Lithium battery test laboratory

중국 전문 리튬 폴리머 셀 공장

디지털 제품용 5800mAh 3.7V 고품질 배터리

804557-2P 5800mAh 3.7V Lipo 배터리 팩


Product Parameters

No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

5830mAh

Standard discharge(0.2C C5A) after Standard charge

Minimum

5800mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

3.0V

Discharge Cut-off Voltage

Discharge

4

Charging Voltage

4.2±0.03V



5

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times

6

Standard charge

Constant Current 0.2C5A

Charge time : Approx 6h

Constant Voltage 4.2V

0.01 C5A cut-off

7

Standard discharge

Constant current 0.2 C5A



end voltage 3.0V

8

Fast charge

Constant Current 0.5C5A

Charge time : Approx 2.5h

Constant Voltage 4.2V

0.01 C5A cut-off

9

Fast discharge

Constant current 0.5C5A



end voltage 3.0V



10

Maximum Continuous Charge Current

1 C5A



11

Maximum Continuous Discharge Current

1C5A



12

Operation Temperature Range

Charge: 0~45

60±25%R.H.

Bare Cell

Discharge: -20~60



13

Storage Temperature Range

Less than 1 year: -20~25

60±25%R.H.

less than 3 months: -20~40℃

at the shipment state

14

Pack  Dimension

High: max60mm

Width: max45mm
Thickness: max16mm

Initial  Dimension
